20ft Tri-Axle Chassis 2018-12-26T14:11:24-04:00

20ft Long Tri-Axle Chassis

  • Can quote on New units for purchase
  • Designed to carry a standard 20ft long container
  • Used units for Sale or Rent

TRS is unique in our scope of products and services.
In addition to standard, specialized and fabricated container structures we sell and rent ISO Chassis.

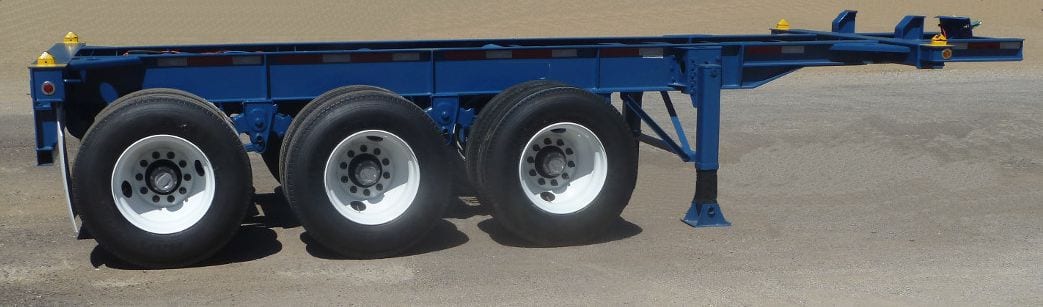

Tri-Axle slider chassis have a heavy duty steel frame with 3 axles. It is designed to carry high payload 20 foot ISO containers up to 53,000 lbs.

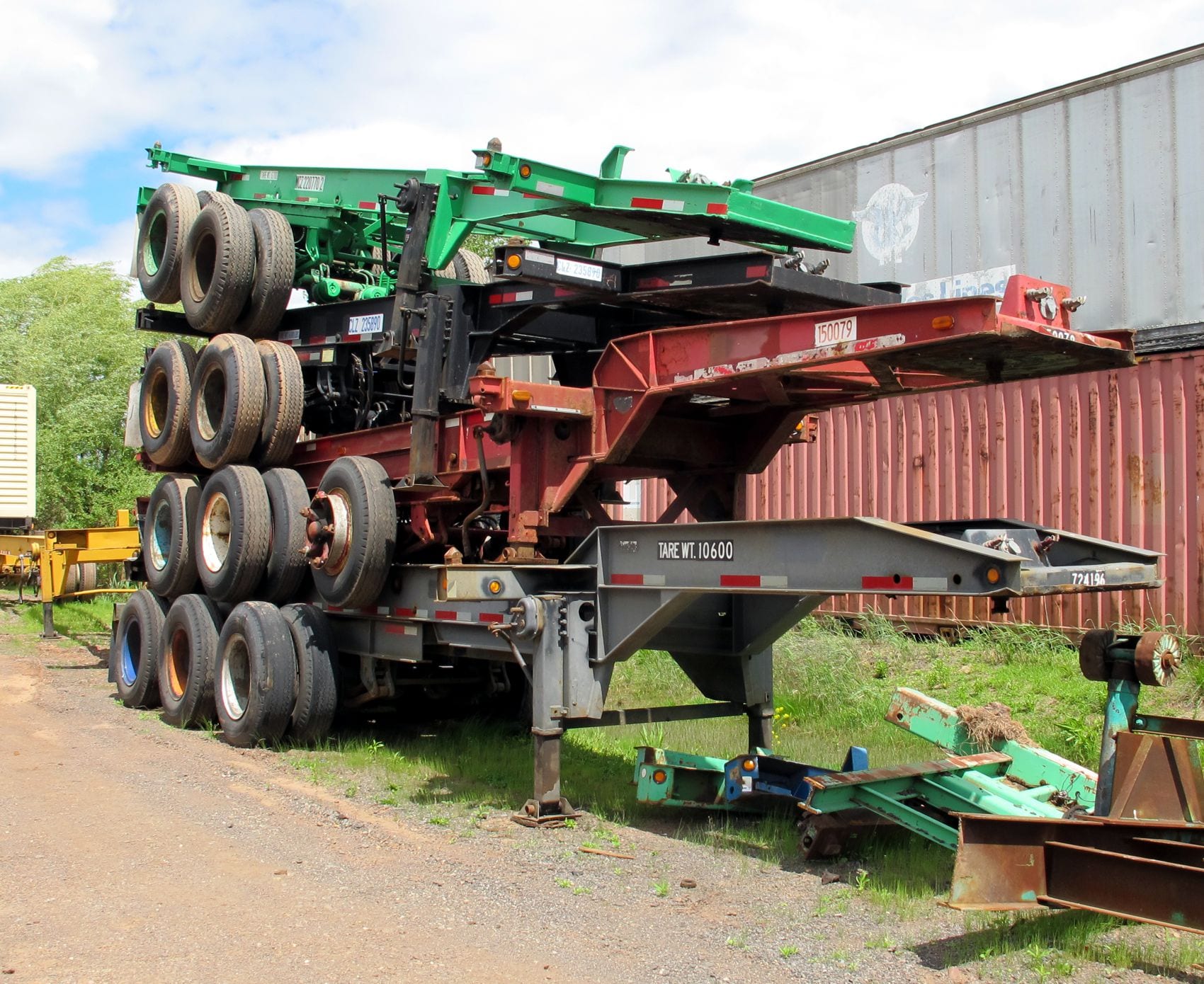

Chassis can be stacked 3 high for transport.

  • Availability can include New, Refurbished, Used and Fix It Yourself condition.
  • Domestic chassis will meet FHWA Roadworthy requirements.
  • Parts for Sale
  • Registration Services
  • Repairs Performed
  • TRS sells ISO container chassis for the safe and cost-effective transport of empty and loaded containers.
  • We can quote on New Tri-axles and Specialty Chassis.

Visit our facility to survey and evaluate the quality, price points and grades of our chassis.

  • Chassis can raise your container to dock height for easy loading
  • Chassis can be stacked 3 high for space efficiency
  • Containers cannot be dangerously dragged off the chassis
  • Cost effective: no wasted time chaining down; load + lock
  • Driver safety: No chaining or climbing onto the roof of a container
  • No blocking is needed since the chassis allows full access to lift
  • Container Chassis setups can be converted into turnkey portable event space, emergency generators, data centers and more
  • TRS offers Short and Long term Rental Options.
  • Chassis is inspected and documented prior to leaving and upon return
  • Easy conversion from rental to a buyout at any time
  • Insurance is required from Lessee
  • Lessee responsible for all Maintenance + Repair items
  • Lessee responsible for damages or tire swaps while on rent
  • Reasonable 30 day minimum on all rentals
  • Traditionally fast turnaround time
  • We have a diversified inventory of chassis types
  • Having difficulty getting a chassis at the pier, it is time to purchase.
  • As Is” when you have a mechanic on staff
  • TRS can mount your plate on the chassis
  • Basic Roadworthy units for export
  • Chassis sold in different conditions to meet client needs
  • Refurbished which includes new tires, brakes and paint
  • Roadworthy / FHWA to carry loads
  • TRS purchases chassis back when the market will allow
  • Upon payment in full client receives Title and Bill of Sale

Length                              33’ closed
Extended                         43”
Width                               96”
King pin Placement      16”
Rear Height                    52” from ground
Fifth Wheel Height:     48”
Axles                               3
Tare Weight                  10,500 lbs.
Gross Vehicle Weight  64,000 lbs.
Mudflaps
Stack 3 high for transport
Tire Size                         11R 22.5
Rim Wheels                   8.25 X 22.5
Landing Gear 2 speed with square leg + low profile sand shoes.
*Not used for tanks or liquid cargo

  • Consignment if you want TRS to sell your chassis.
  • Inspections
  • Registration
  • Repairs
  • Sell Parts
  • Short term storage facility.
  • Stacking and Binding for Transit
  • Surveys prior to rental or purchase

Remember:
Don’t see what you need contact RenaS@trscontainers.com for Nationwide availability and pricing.
Interested in Modifications, contact FrankS@trscontainers.com Special Projects Manager.

Availability and pricing subject to change.  Specifications can vary based on Manufacturer, Age and State Requirements.  The technical information provided is for guidance only and TRS cannot be held responsible for original specs and tolerances.
