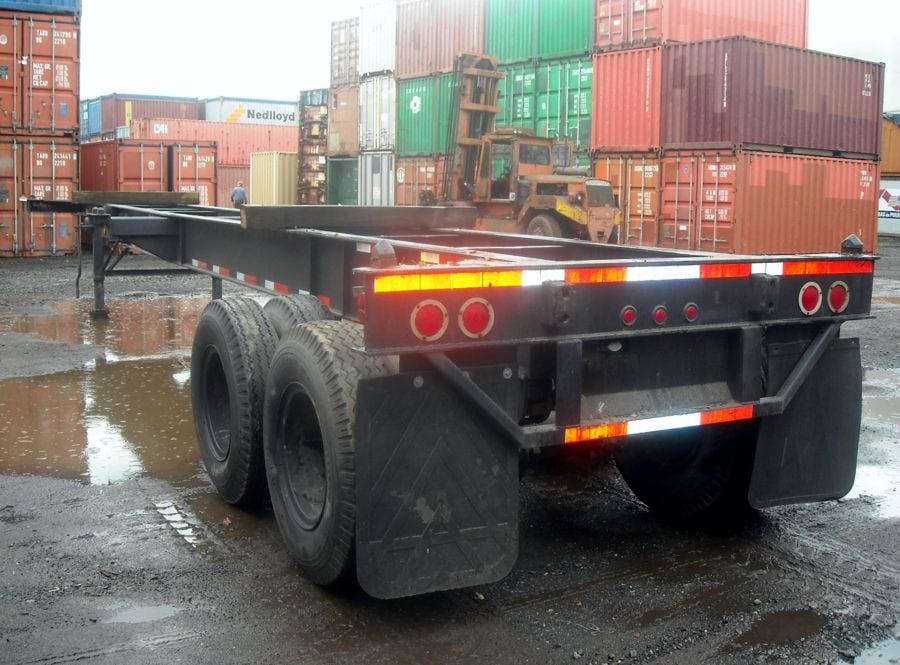

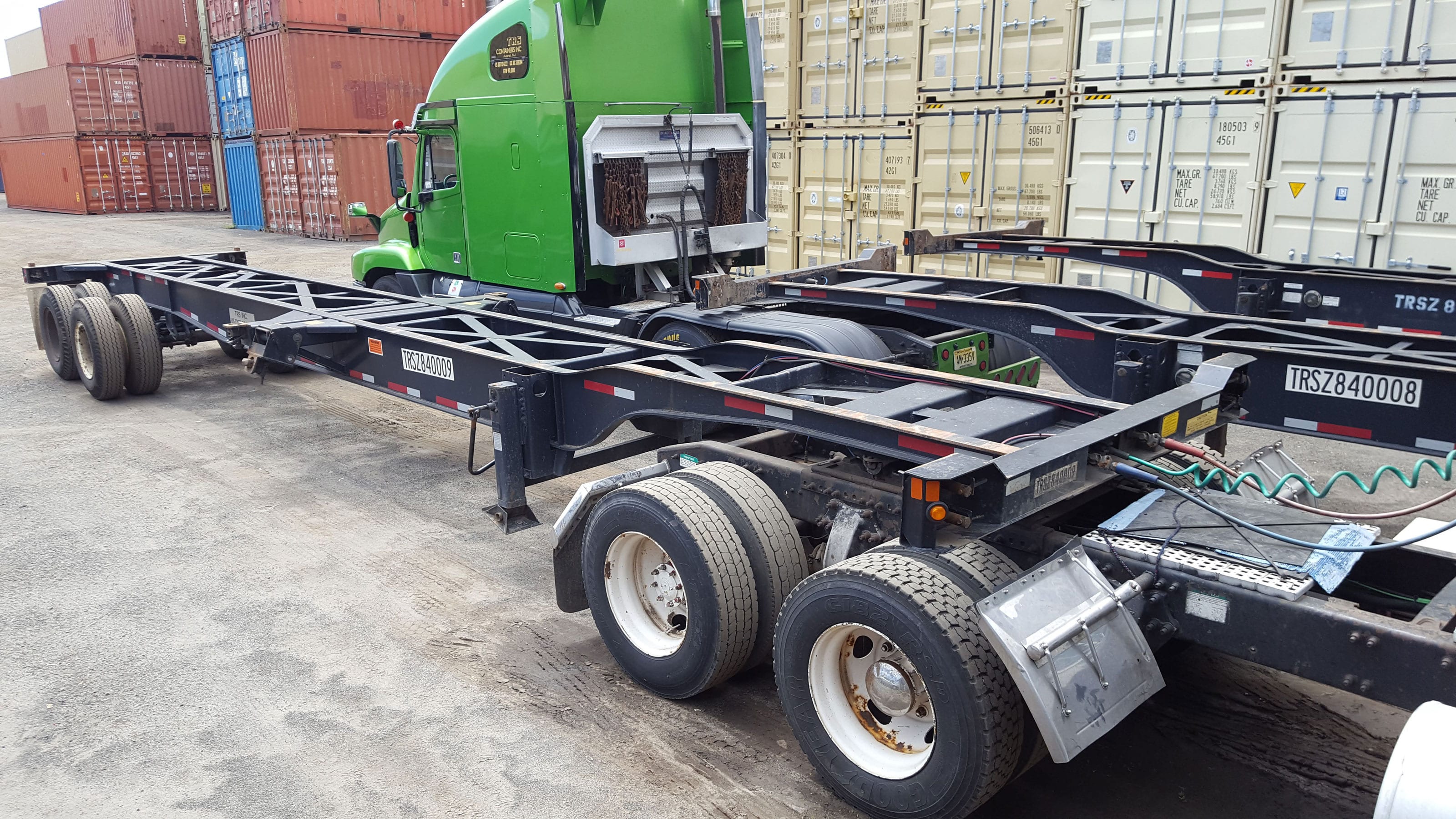

40ft Long 8-Pin Lock Chassis

  • Carries 1 x 40ft empty or loaded standard height tunnel container.

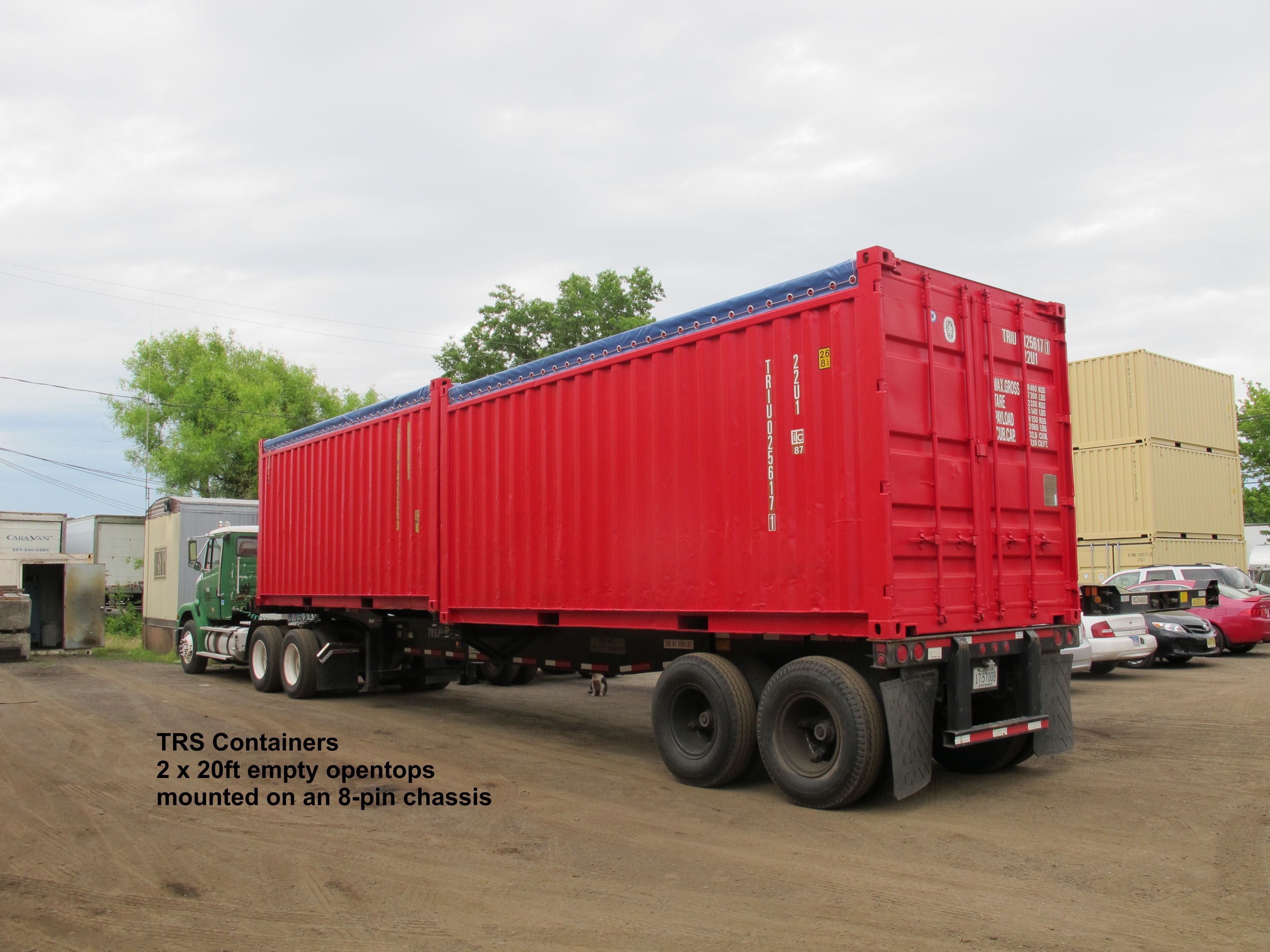

  • Carries 2 x 20ft empty standard containers or 1 x 20ft loaded
  • TRS sells New and Used 8-pin lock Chassis
  • TRS rents Used 8-pin lock Chassis

TRS is unique in our scope of products and services. In addition to standard, specialized and fabricated container structures we sell and rent ISO Chassis.

  • Availability can include New, Refurbished, Used and Fix It Yourself condition.
  • Inventory includes 40ft L  8-pin lock chassis for their strength and flexibility.
  • Special Order Option: 40’ 8-pin Convertible Chassis which transports 2 x 20ft standard empty, 1 x20ft empty, 40’ X 8’6” H or 9’6”, 20’ 9’6” H on the rear and a 20ft standard on the front empty or loaded.
  • Domestic chassis will meet FHWA Roadworthy requirements.
  • Parts for Sale
  • Registration Services
  • Repairs Performed
  • TRS sells ISO container chassis for the safe and cost-effective transport of empty and loaded containers.
  • We can quote on New Tri-axles and Specialty Chassis.
  • We provide Used 20ft long sliders, 40ft goosenecks, 40ft 8-pin locks, and 40’ – 45’ Extendables.

Visit our facility to survey and evaluate the quality, price points and grades of our chassis.

  • Chassis can raise your container to dock height for easy loading

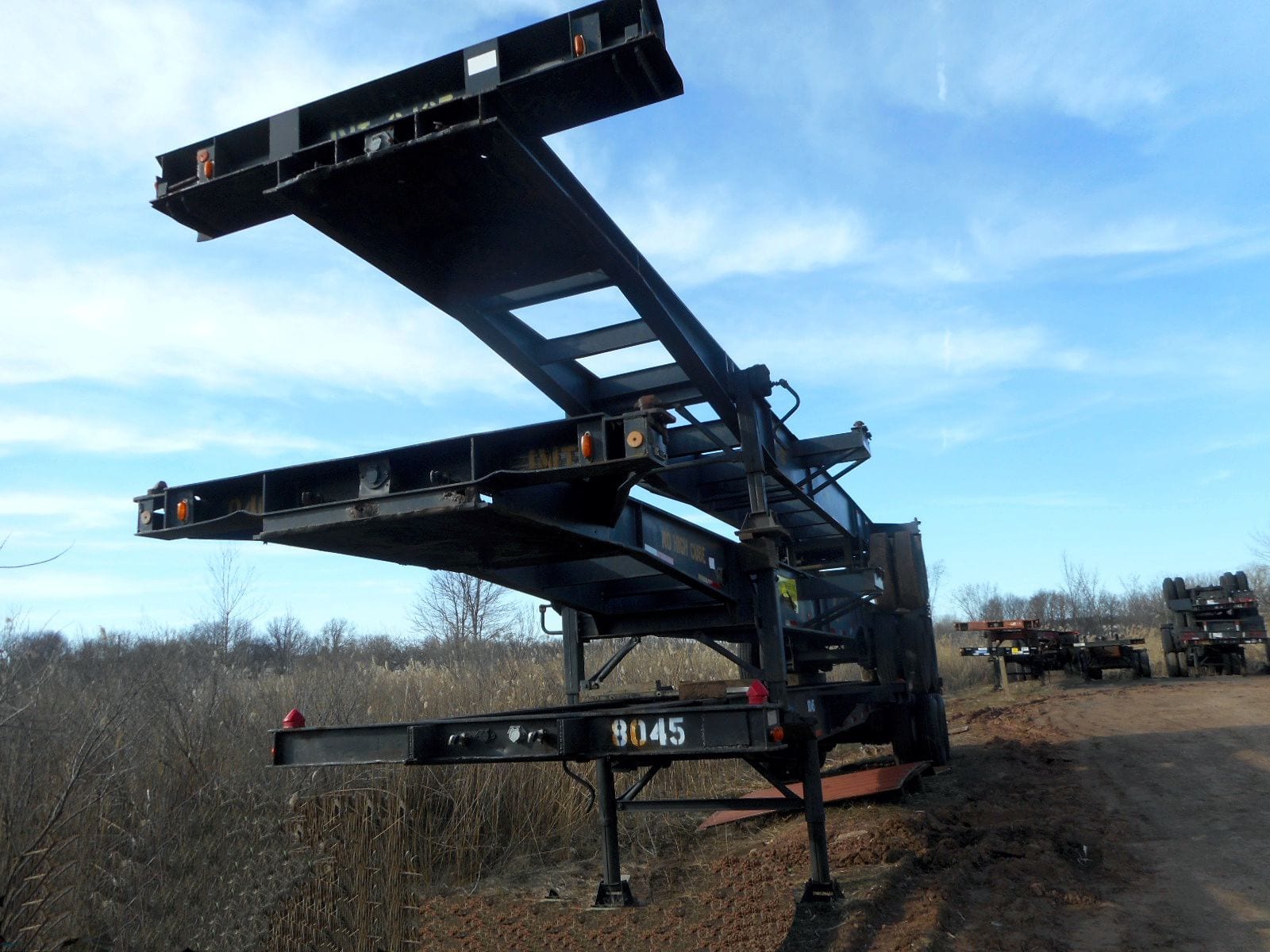

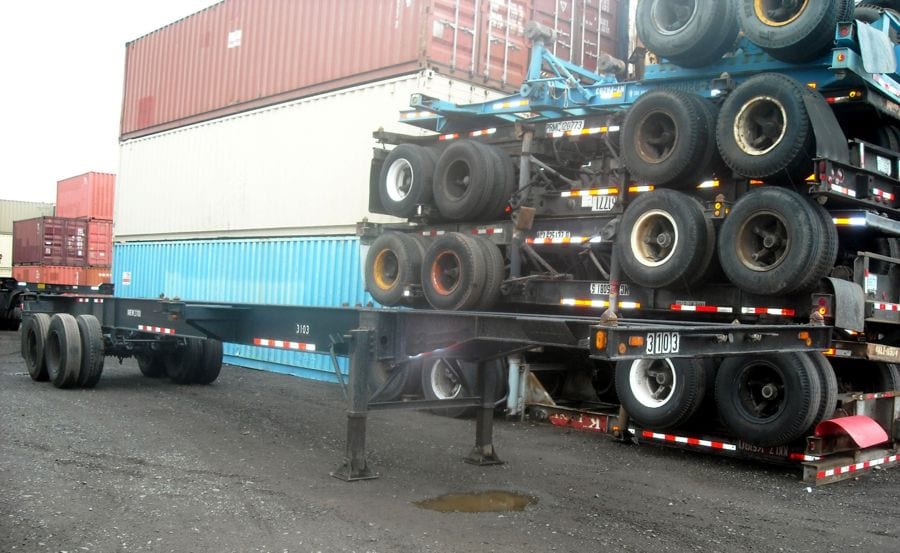

  • Chassis can be stacked for space efficiency
  • Containers cannot be dangerously dragged off the chassis
  • Cost effective: no wasted time chaining down; load + lock
  • Driver safety: No chaining or climbing onto the roof of a container
  • No blocking is needed since the chassis allows full access to lift
  • Container Chassis setups can be converted into turnkey portable event space, emergency generators, data centers and more
  • TRS OFFERS SHORT AND LONG TERM RENTAL OPTIONS.
  • Chassis is inspected and documented prior to leaving and upon return
  • Easy conversion from rental to a buyout at any time
  • Insurance is required from Lessee
  • Lessee responsible for all Maintenance + Repair items
  • Lessee responsible for damages or tire swaps while on rent
  • Reasonable 30 day minimum on all rentals
  • Traditionally fast turnaround time
  • We have a diversified inventory of chassis types
  • Having difficulty getting a chassis at the pier? Time to purchase.
  • “As Is” when you have a mechanic on staff
  • TRS can mount your plate on the chassis
  • Basic Roadworthy units for export
  • Chassis sold in different conditions to meet client needs
  • Refurbished which includes new tires, brakes and paint
  • Roadworthy / FHWA to carry loads
  • TRS purchases chassis back when the market will allow
  • Upon payment in full client receives Title and Bill of Sale
Length                       40ft
Width                           96”
King pin Placement 30.5”
Rear Height              52” from ground
Axles                          2
Tare Weight                          10,200 lbs.
Gross Vehicle Weight         65,000 lbs.

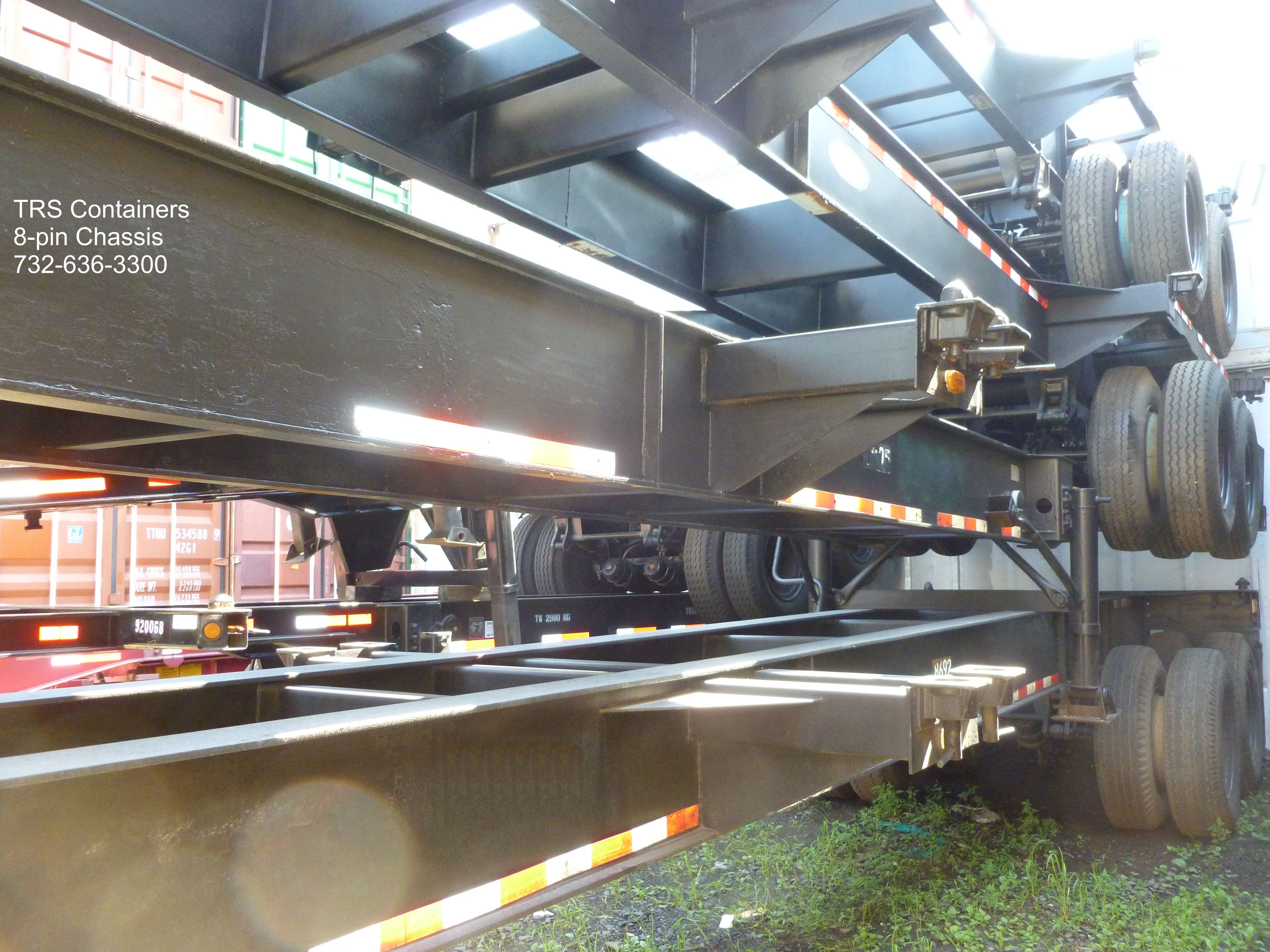

8 Steel twist locks to secure containers
ABS brakes, Brake Chambers 30/30
Cross members made of 10 gauge steel
Landing Gear 2 speed square leg.
Mudflaps
Spring Ride Suspension: 3 leaf
Stack 3 high for transport
Tire Size                    10.00 X 20 tires
Zinc Rich Primer under Urethane Topcoat. Colors vary.
  • Consignment if you want TRS to sell your chassis.
  • Inspections
  • Registration
  • Repairs
  • Sell Parts
  • Short term storage facility.
  • Stacking and Binding for Transit
  • Surveys prior to rental or purchase

Availability and pricing subject to change.  Specifications can vary based on Manufacturer, Age and State Requirements.  The technical information provided is for guidance only and TRS cannot be held responsible for original specs and tolerances.
