• Air tight, weatherproof, and rodent proof.
• Can be hardwired to your building for instant cold storage
• Climate Controlled to ensure freshness and reduce waste.
• Clip-on Genset easy to mount on front end of reefer for uninterrupted power
• Control temperature and humidity in a self-contained environment
• Diesel Generators clip-on when there is no other source of power.
• Durable, stackable and flexible in design
• Extra foot of height allows for more storage and higher shelving capabilities
• Ground level access reduces risk of injury on slippery steps.
• Hazmat Chemical Storage
• Hydroponic Produce and Marijuana farms are built into Containers.
• Portable Morgue for disasters.
• Store: Pharmaceuticals, Electronic Equipment, Flowers and Bulbs, Fish: perishables.
• Temporary climate control shelter for events, festivals seasonal cold storage.

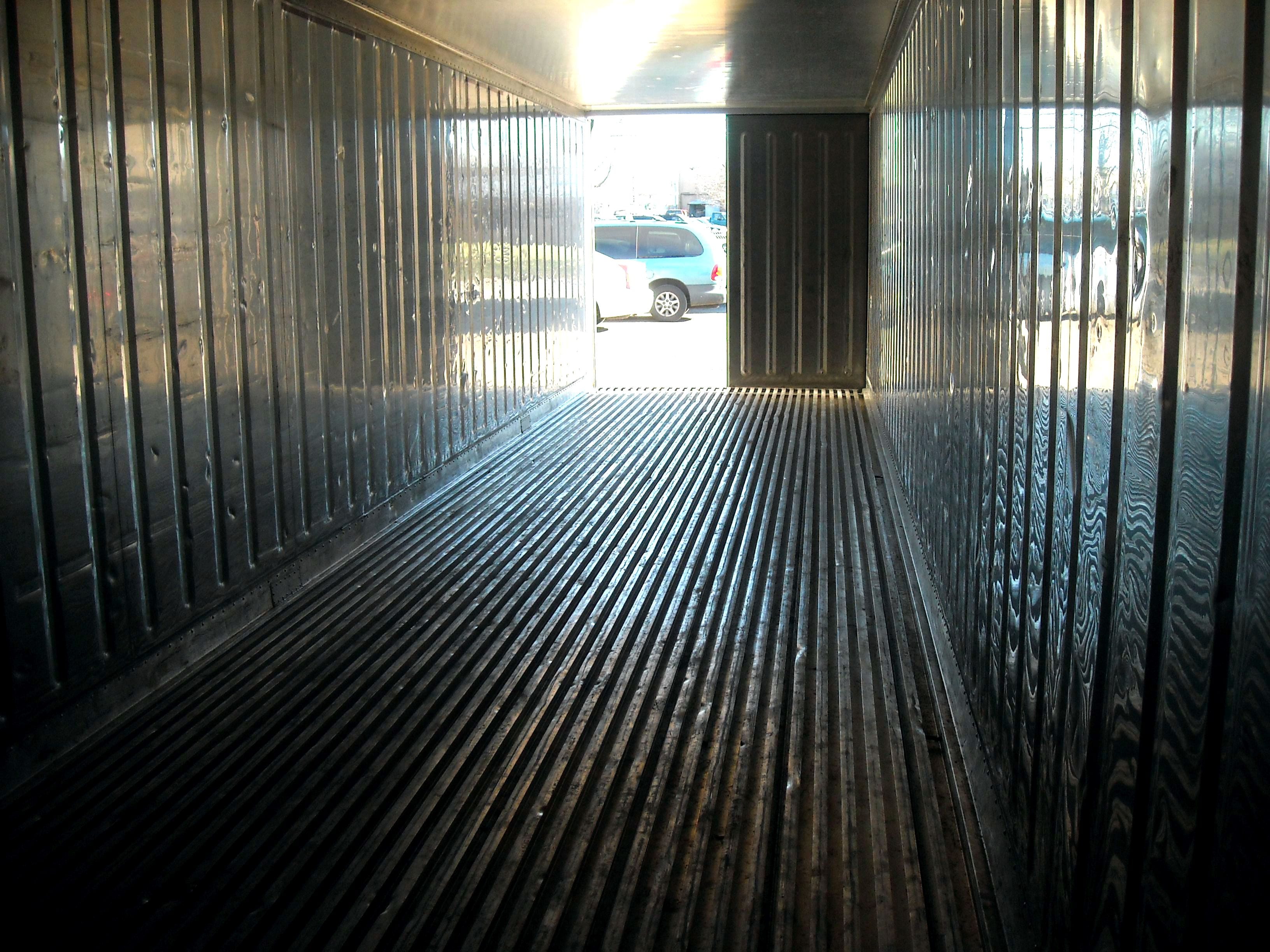

• Aluminum t-bar floor over a basin so air circulates around the product
• Corner castings for easy lifting and repositioning
• 4” Dense foam insulation in walls, floor, ceiling and doors
• Electric only reefer unit. Cord for plug is provided
• Exterior panels are aluminum, fiberglass or muffler grade steel
• Frame constructed of 14-gauge non-corrosive cor-ten steel
• Keep perishable products in temps between -10F to 70F
• Mylar/PVC strip containment curtains
• Single or dual 220/440 volt 3 phase power,  50/60 hz, 25 – 30 amps
• Standard sizing allows for transport by truck, rail, ship or air
• Two swing doors at one end to keep the designated temperature
• Unit has auto defrost mode
• Washable stainless steel interiors

Dimensions are general and will vary based on the manufacturer’s specifications.  Please contact us for exact dimensions.

Exterior:
20ft L X 8ft W X 8’6′ H
Interior:
38’5 L X 7’6′ W X 8’1″ H
Plymetal Door Opening:
7’6′ W X 8’4″ H

Weight:
Max Gross Weight:                    65,680 lb
Tare Weight with reefer          9,280 lb
Payload                                           74,960 lb
Cubic Capacity:                           2,376 sq ft

• Carrier, Daiken, Thermoking and Mitsubishi units available
• Generator sets available to keep unit running while not plugged in.
• Transformers available to provide dual voltage 220V / 230V
• Install additional doors.
• Install an alarm system.
• Install Mylar / PVC strip Curtain to contain the cold air.
• Install lights with switch

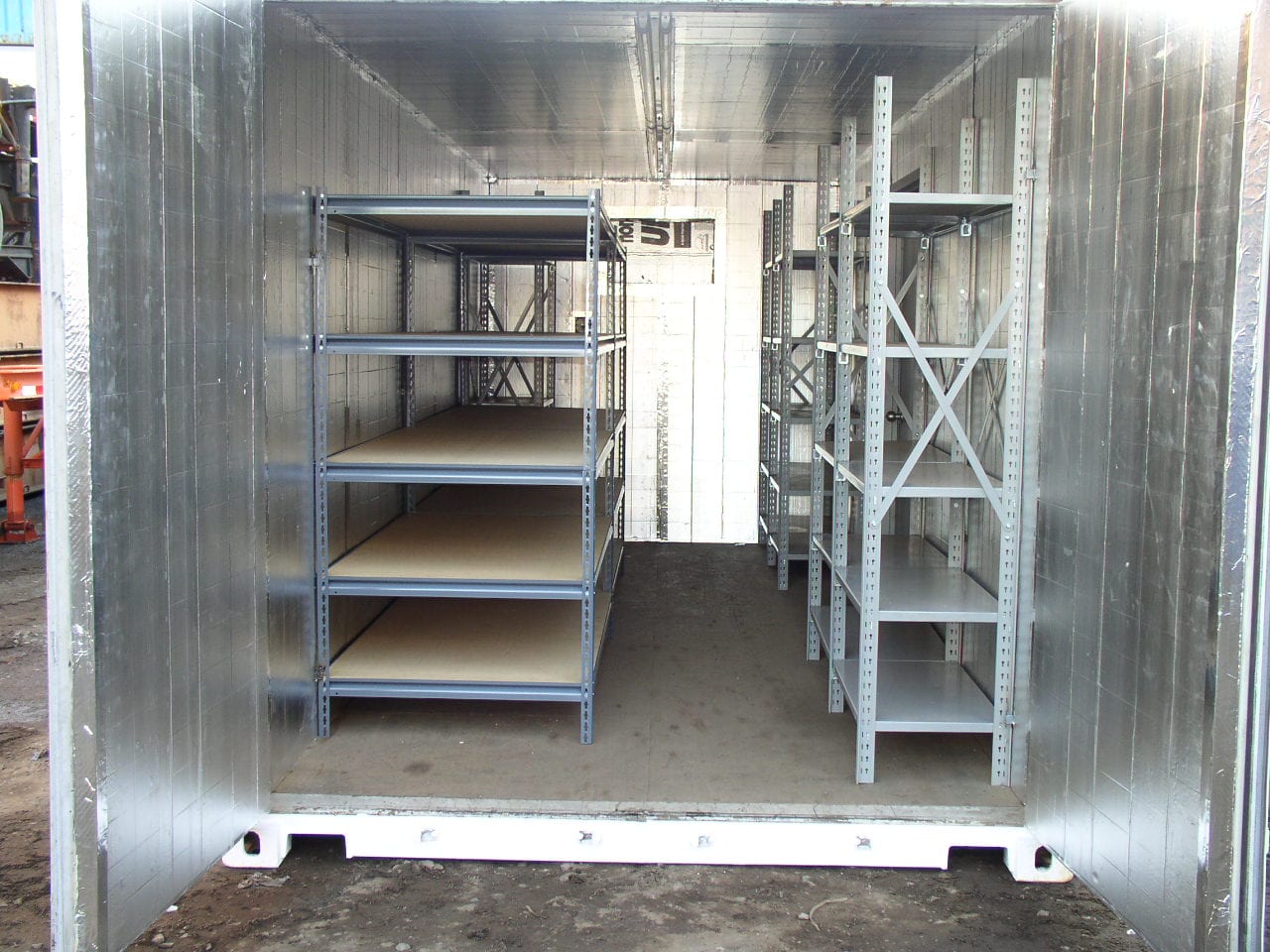

• Install shelving
• Remove the reefer unit then insulate and panel opening.
• If a standard reefer configuration does not fit your application TRS can insulate, panel and climate control a standard steel freight container.

• An insulated container is watertight, lockable and clean; however, the reefer unit is either beyond repair or unreliable for service.
• Can be outfitted with a domestic roof mount RV a/c heat unit or domestic climate control.
• Convert into kiln oven to dry wood.
• If certain features of a reefer container like the aluminum T-bar floor are unsuitable for your application, we offer services to insulate and climate control a standard dry freight container.
• Insulated containers are air tight to guard against freezing temps for storage of paint, grout, etc.
• Insulated containers have the commercial refrigeration unit still mounted on the front.
• Interior walls are durable and easy to clean interior stainless steel.
• Running Reefer Features and Benefits apply to used Insulated Containers.
• TRS can remove and dispose of the inoperative Reefer unit. Then insulate and enclose the opening.
• TRS sells, rents and customizes Used Insulated containers.
• Used insulated containers are referred to as Former Reefers.

Refrigeration containers are manufactured with Electric Only 460V commercial units installed.
Gensets provide uninterrupted power when a reefer cannot be hard wired to a power source.
TRS sells and rents Used Diesel Gensets.

TYPES:

• Clip-on nose-mount gensets attach to the reefer container.
• Underslung generators attach to a chassis via a cable.

FEATURES:

• 15 Kw, 460 volt, 60 Hz, 3-phase power output.
• Constructed of aluminum panels and doors with steel frame.
• Electric reefers (Carrier, Mitsubishi, Daiken, ThermoKing) use gensets as an alternate power source.
• Equipped with a 120 gallon diesel fuel tank.
• Equipped with Fuel heater/Fuel warmer.
• Invaluable at seasonal functions, emergency power outages, construction jobs where electricity may not be available.
• Safety stop controls for low oil pressure, high water temperature.
• Stainless steel exhaust and hardware.
